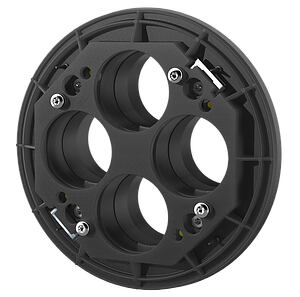

Outer sealing element module 1.2

for multi-line building entry system MSH PolySafe GV1

MSH PolySafe M1.2

Add to wish list

Outer sealing element module 1.2 - for multi-line building entry system MSH PolySafe GV1

tested according to DIN 18533
visual installation reliability due to built-in inspection opening

Combined outer sealing element to supplement the multi-line building entry PolySafe for integration into existing damp-proofing.

Outer sealing element module 1.2 - for multi-line building entry system MSH PolySafe GV1

Facts

Advantages:

Combined outer sealing element with outer flange

Scope of delivery:

1 piece of outer sealing element module 1
1 piece of outer flange module 2 (pre-assembled)
2 pieces of spacers (pre-assembled)
8 pieces of attachment elements (pre-assembled)

Dimensions:

Øa: 275 mm
Sealing width: 30 mm

Application range:

Water exposure class DIN 18533: W1-E and W2.1-E
Waterproof concrete stress class 1 and 2

Material:

Fibre glass reinforced polyamide / EPDM

Downloads

Installation instructions

MSH PolySafe (PDF, 2MB)

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

Item	Article code	Article number	GTIN
Außendichtelement Modul 1.2 für Mehrspartenhauseinführung MSH PolySafe GV1	MSH PolySafe M1.2	1560000104	4052487162784	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
