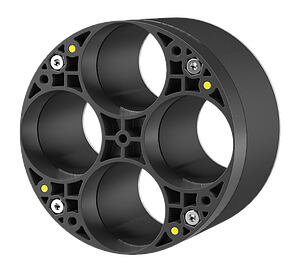

Outer sealing element module 6

for multi-line building entry system MSH PolySafe GV 1 and GV 2

MSH PolySafe M6

Add to wish list

Outer sealing element module 6 - for multi-line building entry system MSH PolySafe GV 1 and GV 2

visual installation reliability due to built-in inspection opening

Outer sealing element to supplement the multi-line building entry PolySafe in core drill holes in double/element walls. The sealing width of 90 mm provides a seal against both the concrete shells of the double/element wall and the pre-mixed concrete filling. This prevents rising water in the area between the element wall and the concrete filling from penetrating the core drill hole.

Facts

Advantages:

Highly reliable thanks to sealing width of 90 mm
Can be combined with outer flange MSH PolySafe M2

Dimensions:

Compatible with core drill/wall sleeve: ID: 199 - 203 mm
Sealing width: 90 mm
Insertion depth: 115 mm

Application range:

Waterproof concrete stress class 1 and 2

Material:

Glass fibre reinforced polyamide/EPDM/stainless steel V2A (AISI 304L)

Downloads

Installation instructions

MSH PolySafe (PDF, 2MB)

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

Item	Article code	Article number	GTIN
Außendichtelement Modul 6 für Mehrspartenhauseinführung MSH PolySafe GV1 und GV2	MSH PolySafe M6	1560000107	4052487162807	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
